Total Reflectance from Human Skin

Scott Prahl

Nov 2021

version 1

Test the ability to grab an arbitrary sample from the 100 available.

The paper is available at

Reference Data Set of Human Skin Reflectance

The data is available at

The Data Set

import numpy as np
import matplotlib.pyplot as plt
import iadpython.nist

%config InlineBackend.figure_format='retina'

We have (at least) two definitions for melanin in the literature. The first is by Dawson and is

\[m_\mathrm{Dawson} = 1.5 + 100 \cdot \log \frac{R(\mathrm{700nm})}{R(\mathrm{650nm})}\]

and that of Kollias who fits the \(-log(R)\) spectra between 650nm and 750nm.

def dawson_melanin(λ, R):
    """
    Dawson definition of melanin.

    metric =

    Args:
        λ: wavelength [nm]
        R: total reflectance value [-]

    Returns:
        Dawson metric for melanin.
    """
    L = -np.log(R)

    j700 = np.abs(λ - 700).argmin()
    j650 = np.abs(λ - 650).argmin()

    M = 100 * (L[j650] - L[j700] + 0.015)

    return M


def kollias_melanin(λ, R):
    """
    Kollias definition of melanin.

    Args:
        λ: wavelength [nm]
        R: total reflectance value [-]

    Returns:
        Kollias metric for melanin.
    """
    L = -np.log(R)

    j720 = np.abs(λ - 700).argmin()
    j620 = np.abs(λ - 650).argmin()

    C2, C1 = np.polyfit(λ[j620:j720], L[j620:j720], 1)
    #    linear_model_fn=np.poly1d([C2,C1])
    #    fitted = linear_model_fn(λ)
    #    print(linear_model)

    #    plt.xlim(400,800)
    #    plt.plot(λ,L)
    #    plt.plot(λ,fitted)
    #    plt.show()
    return C1, C2

<>:7: SyntaxWarning: invalid escape sequence '\c'
<>:7: SyntaxWarning: invalid escape sequence '\c'
/var/folders/bk/7msms9wj50nfy_l1gjzfyx480000gn/T/ipykernel_47977/1116322481.py:7: SyntaxWarning: invalid escape sequence '\c'
  """

subject_number = 5

λ, R1, R2, R3, _ = iadpython.nist.subject_reflectances(subject_number)

plt.figure(figsize=(8, 4.5))
plt.plot(λ, R1, label="Measurement 1")
plt.plot(λ, R2, label="Measurement 2")
plt.plot(λ, R3, label="Measurement 3")

plt.xlabel("Wavelength (nm)")
plt.ylabel("Total Reflectance")
plt.title("Subject #%d from NIST Data Set" % subject_number)
plt.legend()
plt.show()

subject_number = 5

λ, R = iadpython.nist.subject_average_reflectance(subject_number)
plt.plot(λ, R)
plt.xlabel("Wavelength (nm)")
plt.ylabel("Average Total Reflectance")
plt.title("Subject #%d from NIST Data Set" % subject_number)
plt.show()

0.0573

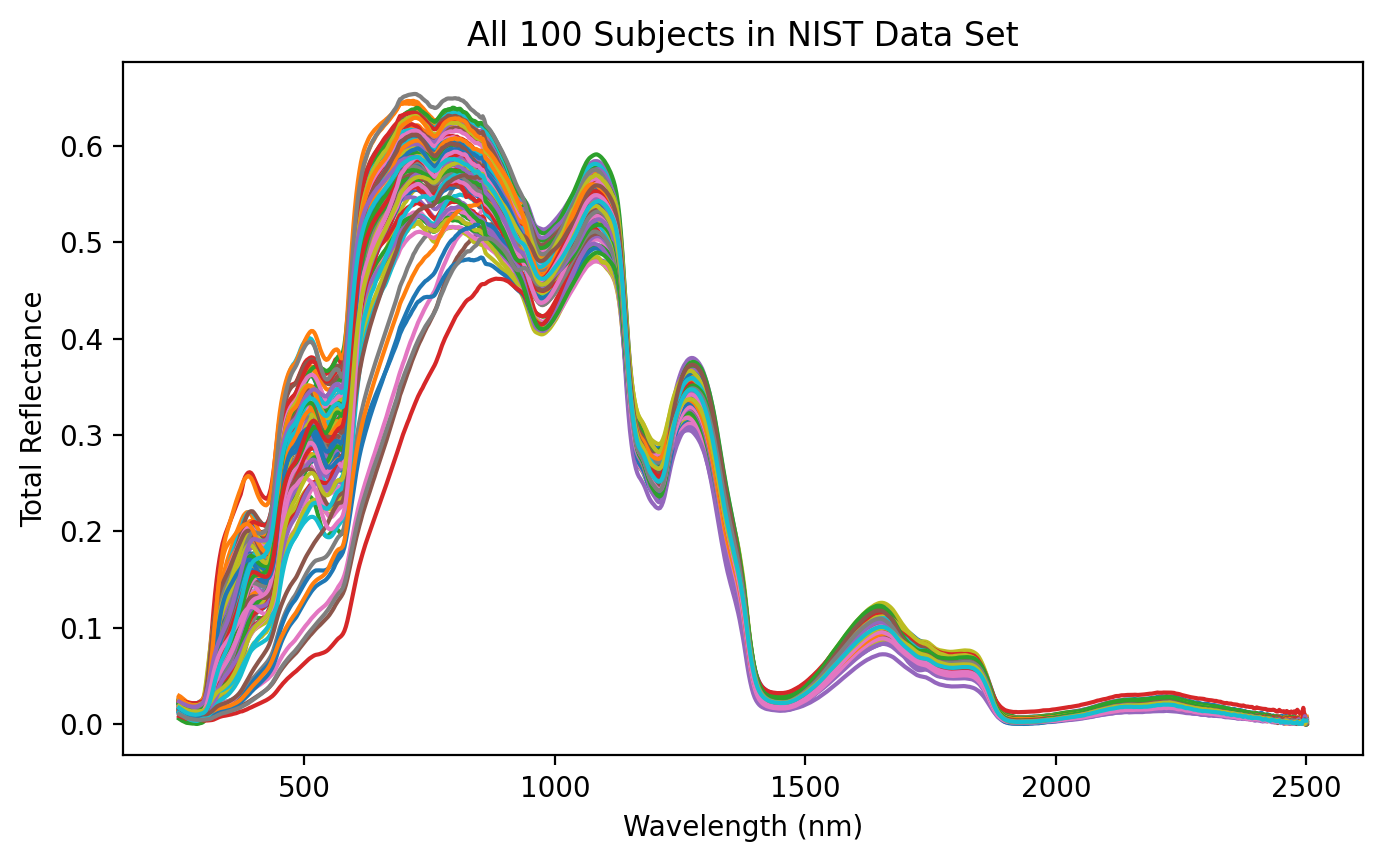

λ, R = iadpython.nist.all_average_reflectances()

plt.figure(figsize=(8, 4.5))
for i in range(100):
    plt.plot(λ, R[:, i])

plt.xlabel("Wavelength (nm)")
plt.ylabel("Total Reflectance")
plt.title("All 100 Subjects in NIST Data Set")
plt.show()

λ, R = iadpython.nist.all_average_reflectances()

plt.figure(figsize=(8, 4.5))
for i in range(100):
    plt.plot(λ, R[:, i] - np.min(R[:, i]))

plt.xlabel("Wavelength (nm)")
plt.ylabel("Total Reflectance")
plt.title("All 100 Subjects in NIST Data Set")
plt.show()

Since Melanin is the primary chromophore at 800nm, lets sort the subjects by to see the distribution

λ, R = iadpython.nist.all_average_reflectances()
subject_id = np.linspace(1, 100, 100, dtype=int)

plt.figure(figsize=(8, 4.5))

for lam in [500, 600, 700, 1900]:
    j = np.abs(λ - lam).argmin()
    R_near = R[j, :]
    sorted_indices = np.argsort(R_near)
    plt.plot(subject_id, R_near[sorted_indices], "o", markersize=2, label=(str(lam) + "nm"))
    first = sorted_indices[0]
    plt.text(subject_id[0], R_near[first], " #%d" % subject_id[first], va="center")
    last = sorted_indices[-1]
    plt.text(subject_id[-1], R_near[last], "#%d " % subject_id[last], ha="right", va="center")

plt.xlabel("Sorted Subject Index")
plt.ylabel("Average Total Reflectance")
plt.title("Subject Reflectance")
plt.legend()
plt.show()

λ, R = iadpython.nist.all_average_reflectances()

L = -np.log(R)
j650 = np.abs(λ - 650).argmin()
L650 = L[j650, :].flatten()

id_max = L650.argmax()
id_min = L650.argmin()
print(id_max, L650[id_max])

plt.figure(figsize=(8, 4.5))
plt.plot(λ, L)

plt.xlim(500, 800)
plt.ylim(0, 2.5)
plt.axvspan(620, 720, color="cyan", alpha=0.5)

plt.xlabel("Subject")
plt.ylabel("Total Reflectance")
plt.title("Reflectance at 800nm")

plt.text(λ[j650], L650[id_max], "#%d" % (id_max + 1))
plt.text(λ[j650], L650[id_min] - 0.05, "#%d" % (id_min + 1), va="top", ha="center")

plt.show()

43 1.3397925274684708

λ, R = iadpython.nist.all_average_reflectances()

c = np.array([])
m = np.array([])
for i in range(100):
    c1, c2 = kollias_melanin(λ, R[:, i])
    m1 = dawson_melanin(λ, R[:, i])
    c = np.append(c, c1)
    m = np.append(m, m1)

sorted_indices = np.argsort(c)
sorted_c_values = c[sorted_indices]

csort = np.sort(c)
plt.figure(figsize=(8, 4.5))
plt.title("All NIST Subjects")
plt.plot(subject_id, sorted_c_values, "bo", markersize=2)
plt.axhspan(1, 2, color="cyan", alpha=0.2)
plt.axhspan(2, 3, color="cyan", alpha=0.4)
plt.axhspan(3, 4, color="cyan", alpha=0.6)
plt.axhspan(4, 5, color="cyan", alpha=1)
plt.xlabel("Subjects Sorted by Melanin Metric")
plt.ylabel("Kollias Melanin Metric")

plt.text(
    subject_id[0],
    sorted_c_values[0],
    " #%d" % subject_id[sorted_indices[0]],
    va="center",
)
plt.text(
    subject_id[-1],
    sorted_c_values[-1],
    "#%d " % subject_id[sorted_indices[-1]],
    ha="right",
    va="center",
)
plt.show()

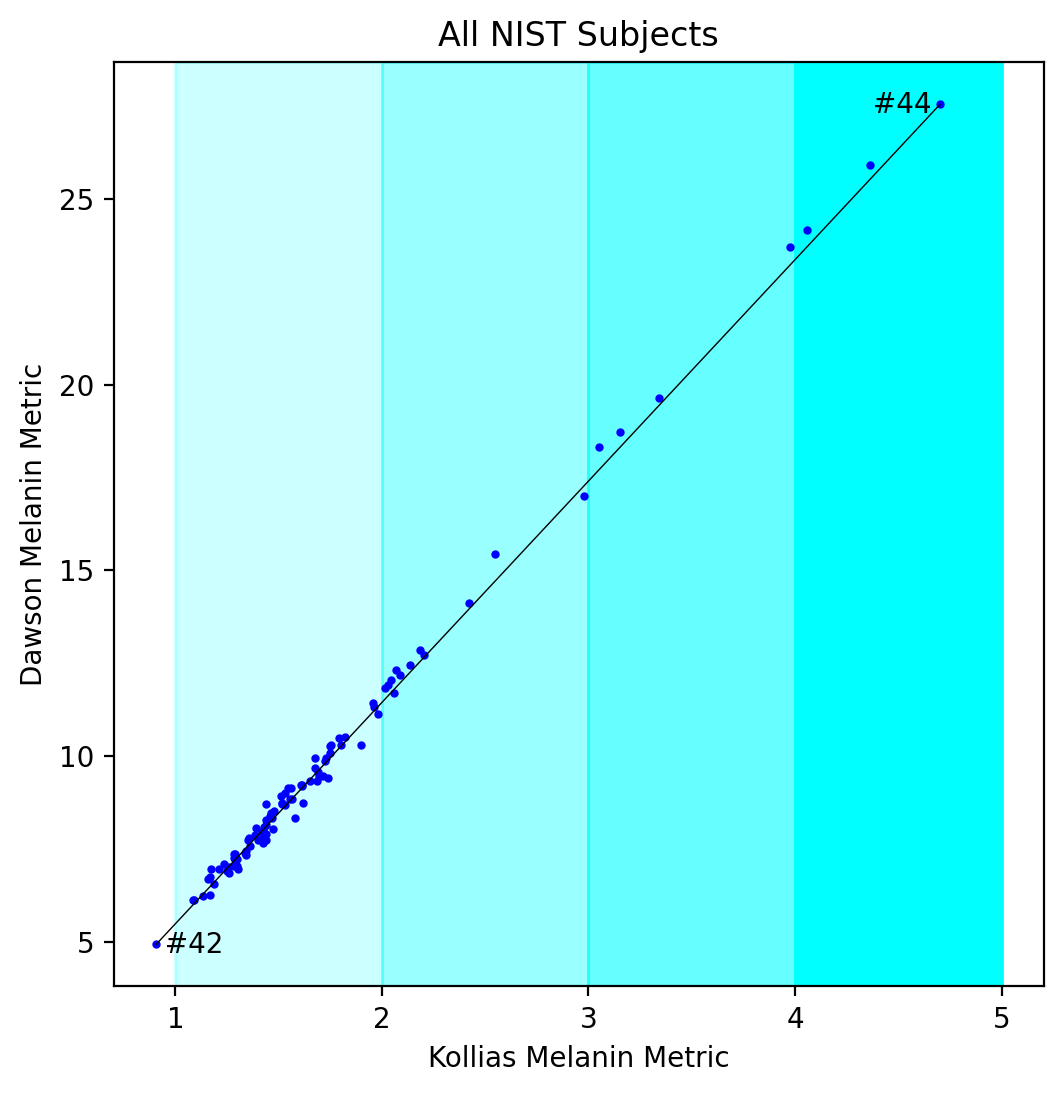

λ, R = iadpython.nist.all_average_reflectances()

c = np.array([])
m = np.array([])
for i in range(100):
    c1, c2 = kollias_melanin(λ, R[:, i])
    m1 = dawson_melanin(λ, R[:, i])
    c = np.append(c, c1)
    m = np.append(m, m1)

imin = np.argmin(c)
imax = np.argmax(c)
plt.figure(figsize=(6, 6))
plt.title("All NIST Subjects")
plt.plot(c, m, "bo", markersize=2)
plt.plot([c[imin], c[imax]], [m[imin], m[imax]], lw=0.5, color="black")
plt.text(c[imin], m[imin], " #%d" % subject_id[imin], ha="left", va="center")
plt.text(c[imax], m[imax], "#%d " % subject_id[imax], ha="right", va="center")
plt.axvspan(1, 2, color="cyan", alpha=0.2)
plt.axvspan(2, 3, color="cyan", alpha=0.4)
plt.axvspan(3, 4, color="cyan", alpha=0.6)
plt.axvspan(4, 5, color="cyan", alpha=1)
plt.ylabel("Dawson Melanin Metric")
plt.xlabel("Kollias Melanin Metric")
plt.show()
